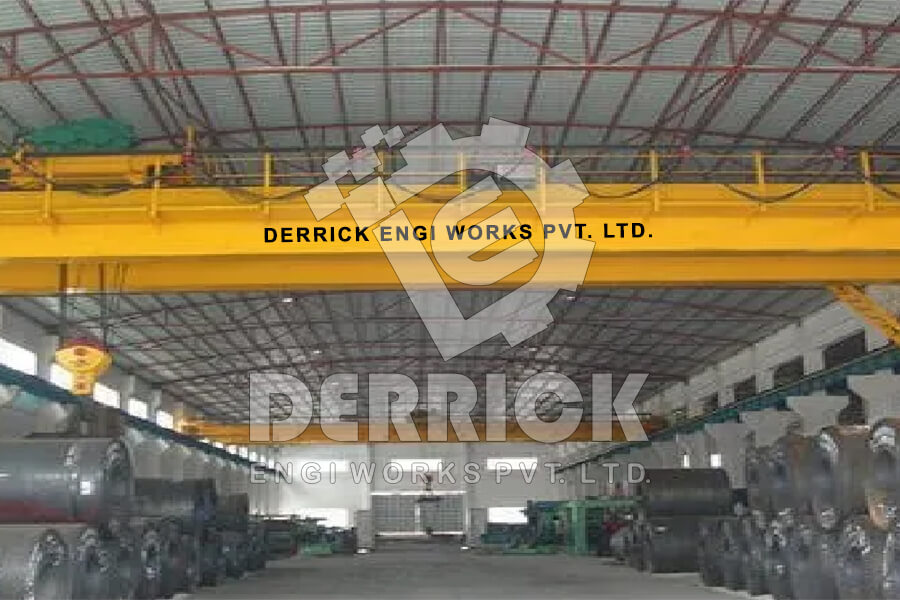

Suitable for the Hazardous area classifications Zone1, Zone2, Gas Group IIA, IIB, IIC

Capacity : 1 Ton to 100 Ton
Span : As Per Customer Requirement
Hight : As Per Customer Requirement
Duty Class : Class-I to Class-IV
Power Source : Electric with FLP glands and Cables.
Operation : Floor operated through pendent pushbutton station (Optional remote or cabin Operated)
Rope guide – Gun metal material for frictionless application.
Panel – Panel suitable for oil and gas group company flame proof.

Capacity : 1 Ton to 100 Ton
Span : As Per Customer Requirement
Hight : As Per Customer Requirement
Duty Class : Class-I to Class-IV
Power Source : Electric
Operation : Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

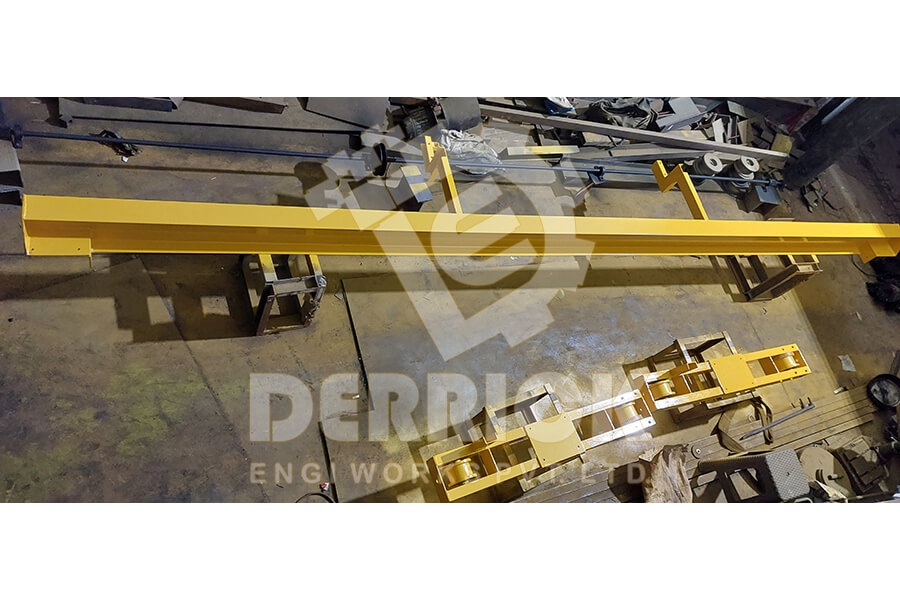

H.O.T Crane is a Hand Operated overhead traveling crane. Overhead traveling cranes are both single girder and double girder and have a capacity ranging from 500 kg to 50,000 kg capacity.

RANGE OF SPECIFICATIONS:

Safe Working Load : 500 kgs to 50,000 kgs
Span: As Per Customer Requirement
Height of Lift : As Per Customer Requirement
Class of Duty / Standards : M4 as per IS 3177 / IS 807

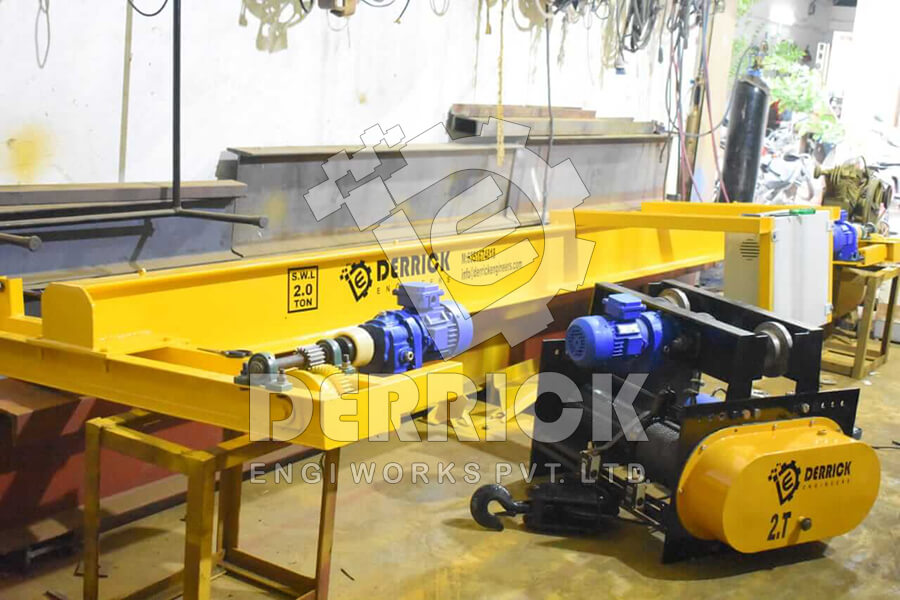

• Capacity : 1 Ton to 200 Ton
• Span : As Per Customer Requirement
• Hight : As Per Customer Requirement Duty
• Class: Class-II to Class-IV
• Country Origin : Made In India
• Power Source : Electric
• Operation : Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

Type

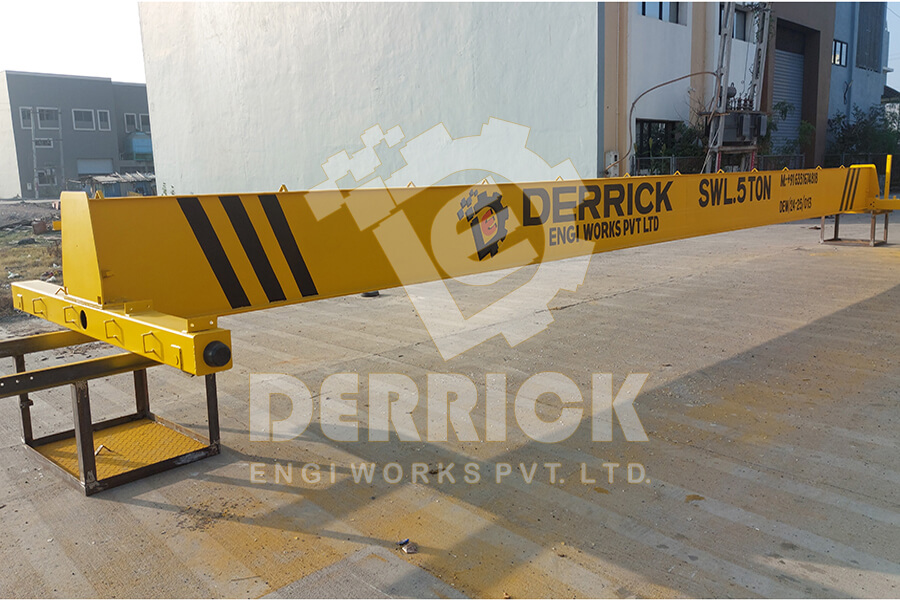

• Single Girder E.O.T. Crane, Capacity 1 Ton to 20 MT

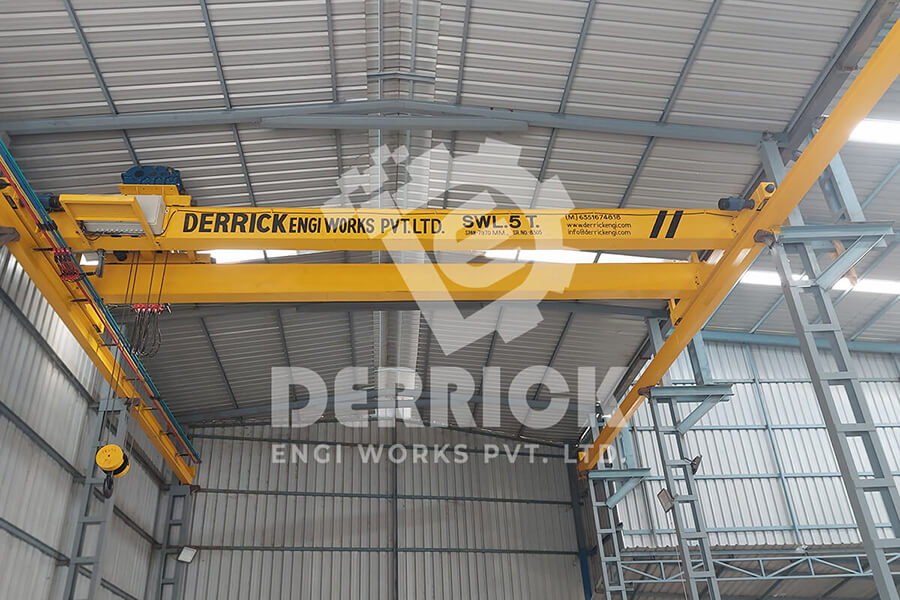

• Double Girder E.O.T. Crane, Capacity 1 Ton to 200 Ton
• Underslung Cranes (Single Girder / Double Girder), Capacity up to 5 MT
• H.O.T. Crane (Single Girder / Double Girder), Capacity 1 Ton to 10 Ton
• Flameproof Cranes (Single Girder / Double Girder), Capacity up to 10 MT

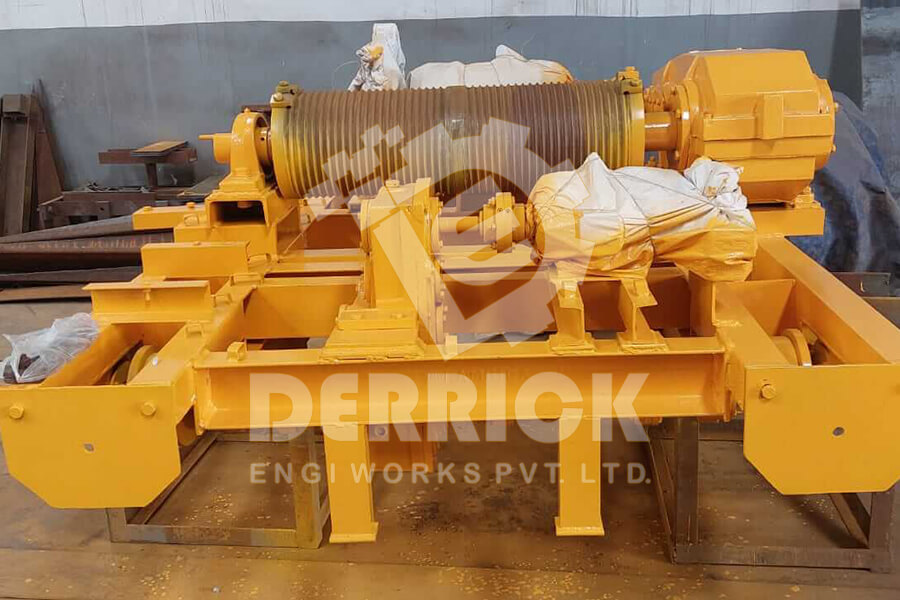

• Crab, End Carriages, Panels etc…

• Capacity : 1 Ton to 200 Ton
• Span : As Per Customer Requirement
• Hight : As Per Customer Requirement Duty
• Class: Class-II to Class-IV
• Country Origin : Made In India
• Power Source : Electric
• Operation : Floor operated through pendent pushbutton station (Optional remote or cabin Operated)

Type

• Single Girder E.O.T. Crane, Capacity 1 Ton to 20 MT
• Double Girder E.O.T. Crane, Capacity 1 Ton to 200 Ton
• Underslung Cranes (Single Girder / Double Girder), Capacity up to 5 MT
• H.O.T. Crane (Single Girder / Double Girder), Capacity 1 Ton to 10 Ton
• Flameproof Cranes (Single Girder / Double Girder), Capacity up to 10 MT
• Crab, End Carriages, Panels etc…

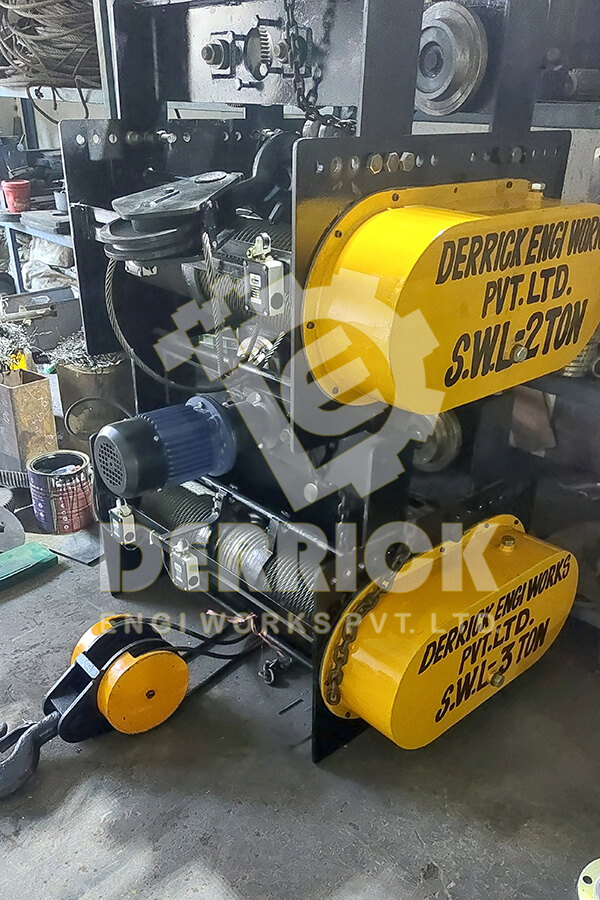

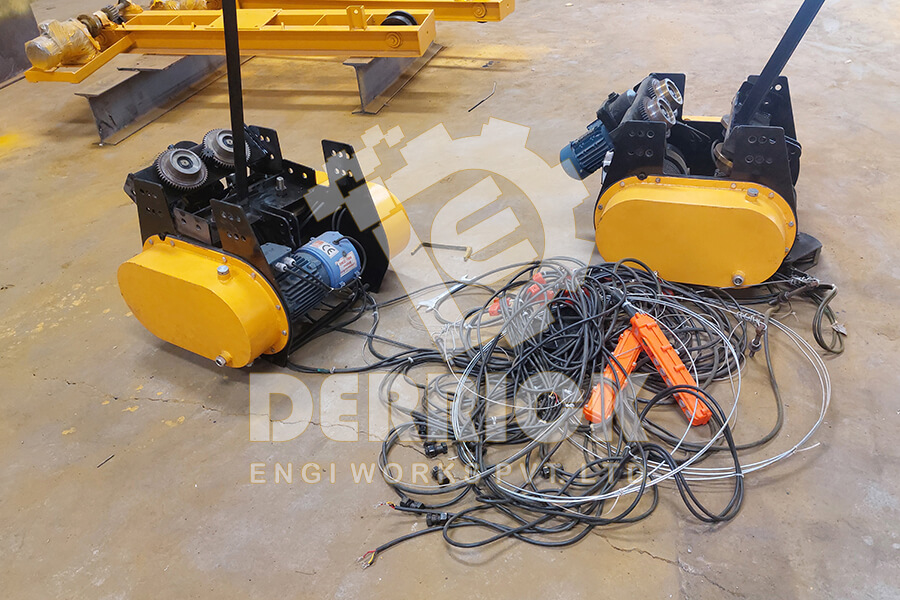

Type

• Complete Electric Wire Rope Hoist
• Fix Suspension type
• Curved Type Hoist which run on curved girder
• Flameproof Electric Wire Rope Hoist
• Micro speed Electric Wire Rope Hoist

Optional Features:

• CT Brake and CT Limit Switch
• Panel for LT/CT/Hoisting Drive
• VFD for hoisting, cross travel and long travel motion
• Higher height of lifts
• Different speeds for hoist CT.
• Manual geared trolley, flexible trolley for negotiating radius of curvature, push-pull trolley

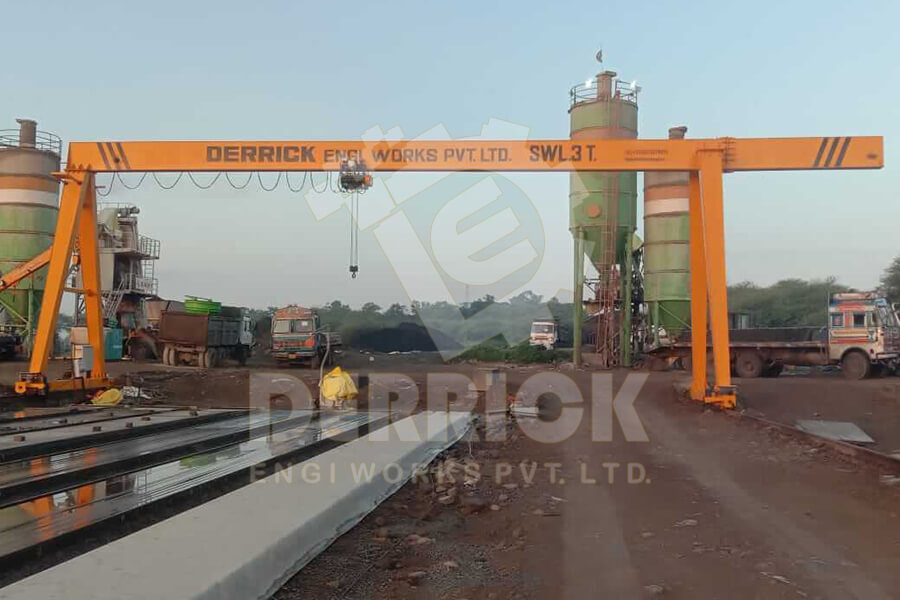

• Span : 5 Mtrs. to 50 Mtrs.
• Safe Working Load : 1.0 Ton to 200 Ton
• Class of Duty / Standards : Equivalent to M5, M6, M7, M8 as per IS/BS/DIN
• Drive System : In Accordance with IS/BS/DIN Structural Parts and other Miscellaneous Parts with IS/BS/DIN
• Speed : Selected depending on client specification / application.

• Span : 5 Mtrs. to 10 Mtrs.
• Safe Working Load : 1.0 Ton to 30.0 Ton
• Crane Control : From floor through Pendant Push Buttons, Optionally through Radio Remote Control.
• Motors : Squirrel Cage & Slip Ring Motors based on application requirements, built-in separator electrically operated fail to safe brakes for all three motions. Motors with ‘F’ class insulation provided in all motions.
• Power Supply System : To Hoist and Cross Travel through Trailing Cables / Drag Chain to crane through Shrouded Bus Bars / Traveling Cable / MS Angle Iron Conductors / Bare Copper Conductors (Depending on Customer’s Choice and Application).

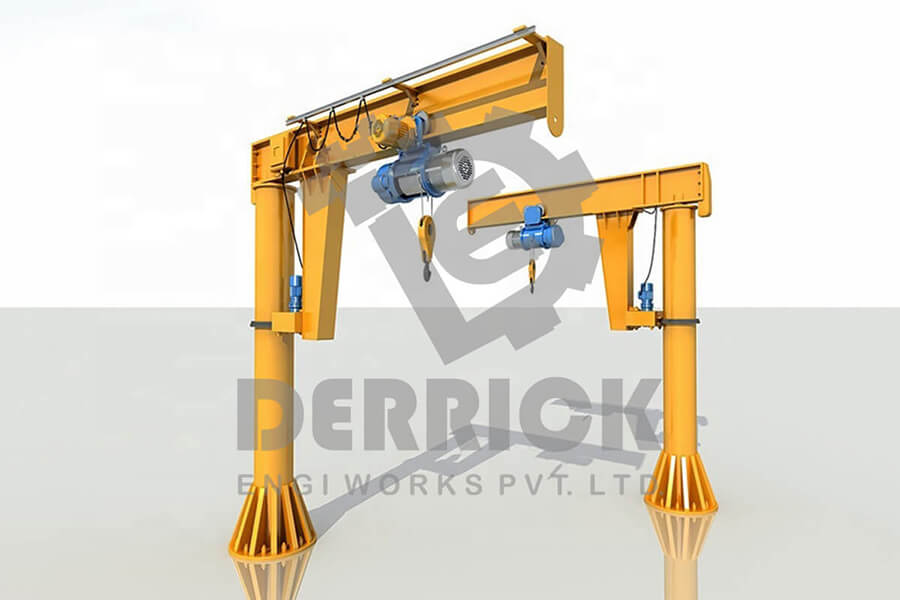

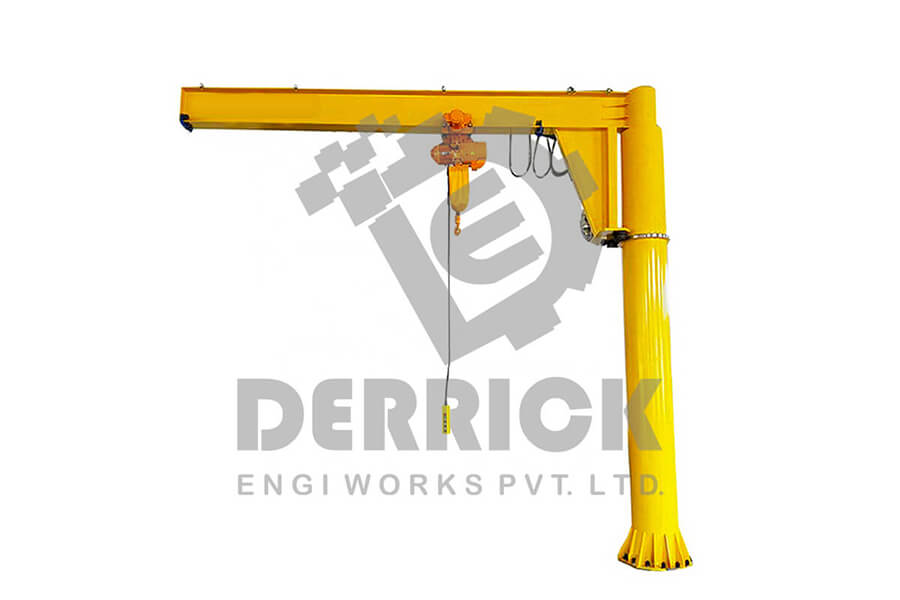

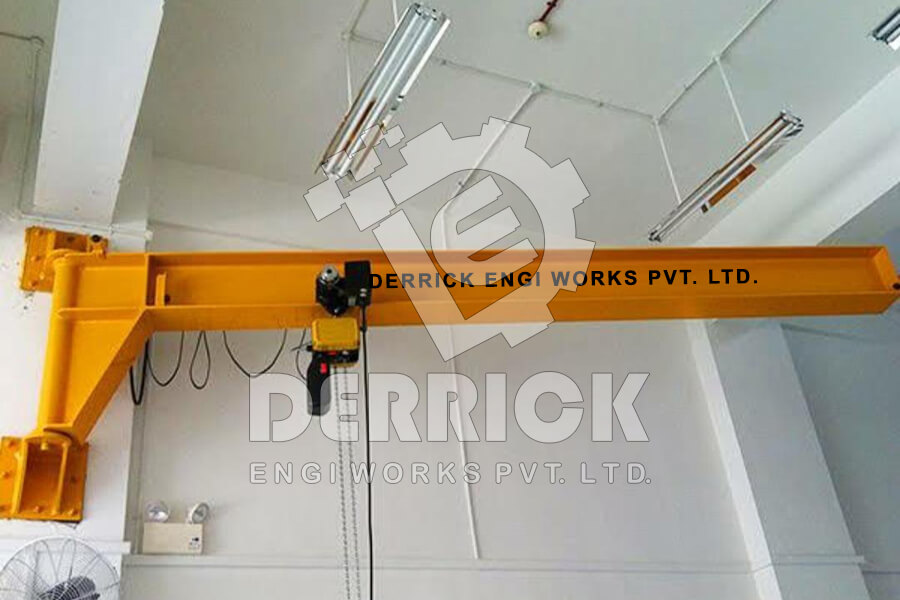

• Capacity : 1 Ton to 10 Ton
• Arm Length : As per Customer Requirement
• Height : As per Customer Requirement
• Power Source : Electric
• Operation : Floor Operated Through Pendent Pushbutton Station (Optional Remote or Cabin Operated)

• Power Source : Electric
• Usage / Application : Industrial

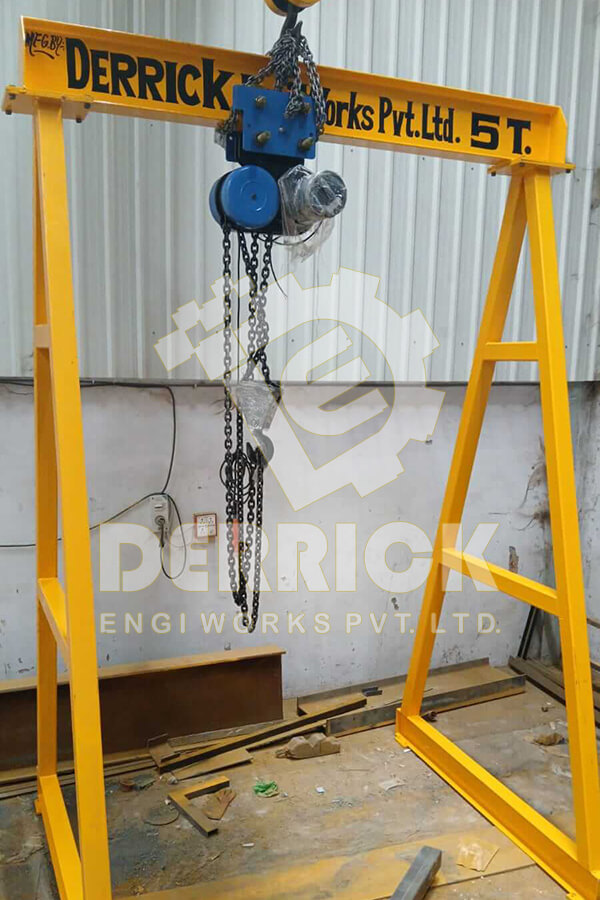

• Capacity : 5 Ton To 200 Ton
• Hight of Lift : UP to 50 Mtr
• Trolley Option : With Trolley, Without Trolley
• Wire Length(Mtrs.) : 6-100 Mtr
• Material : Mild steel

• Brand : Derrick Engi Works Pvt. Ltd.
• Structure : Mild Steel
• Country of Origin : Made in India

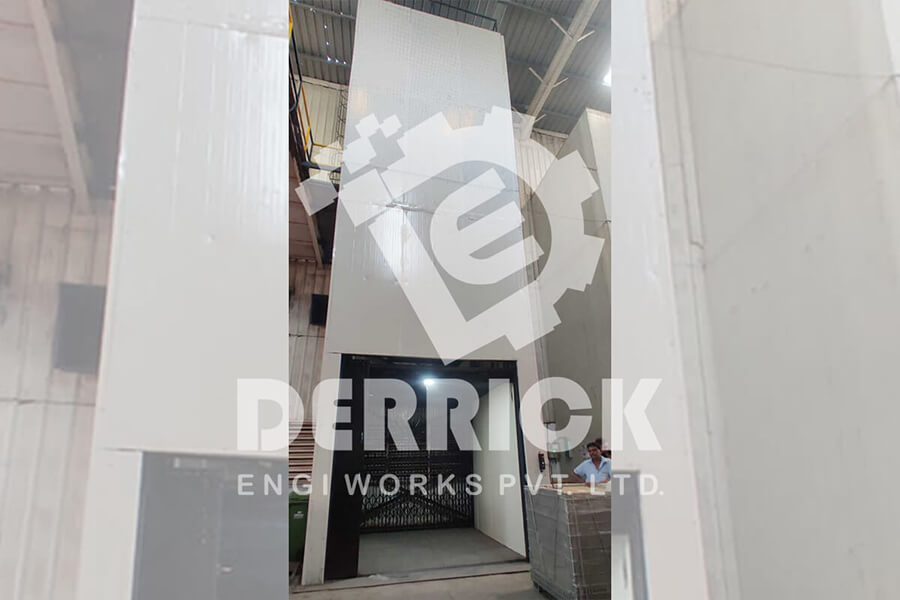

• Maximum Height : As per customer’s requirement.
• Capacity : 1 Ton to 5 Ton
• Door Style : Manual (Caged)
• Usage/Application : Factory, Warehouses, etc

Safe Working Load : 0.5 Ton to 15 Ton

• Concentrated design for high substance.
• The chain hoist tested at 125% overload before dispatch.
• Quality Designed forged steel top and bottom hooks.
• Precision shaped load sheave is mounted to assure minimum wear and smooth operation.

Safe Working Load : Capacity upto 10 Ton.

• Low Headroom.
• Positive Transmission
• Lubrication

• Frame : Built of plates & held rightly together by studs & nuts.

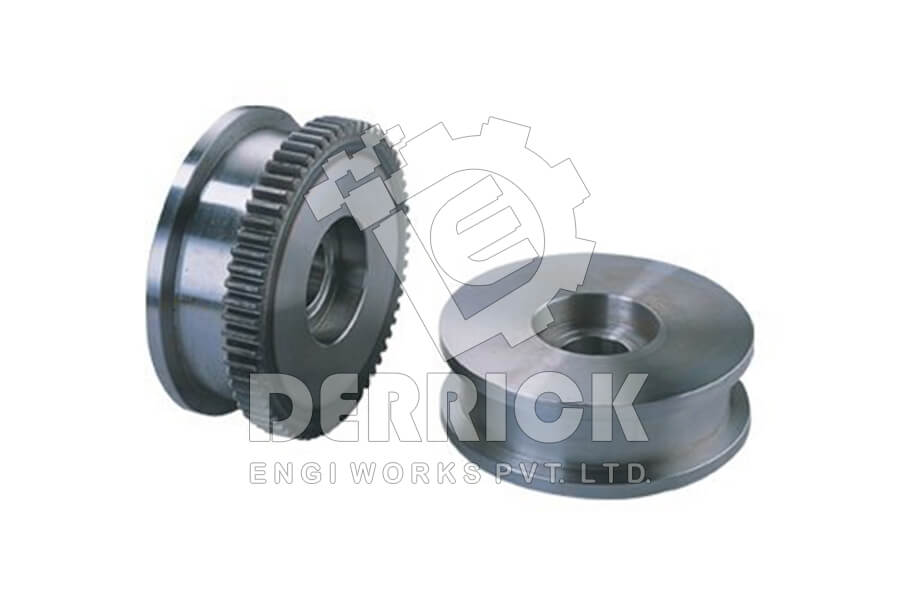

• Wheels : Graded casting Wheels are mounted on ball bearing ( & also without bearing ) geared Wheel are accurately hobbing cut.
• Pinion : Accurately hobbing cut from M. S. bar.
• Chain Wheel : Cast iron Chain Wheels for geared trolley.
• Hand Chain : Hand Chain, Calibrated to Suit above Chain Wheels is used.
• Improvement : We reserve the right to change the specifications & design without notice. Trolley can be supplied for bigger/ smaller beam size than given in the above table.

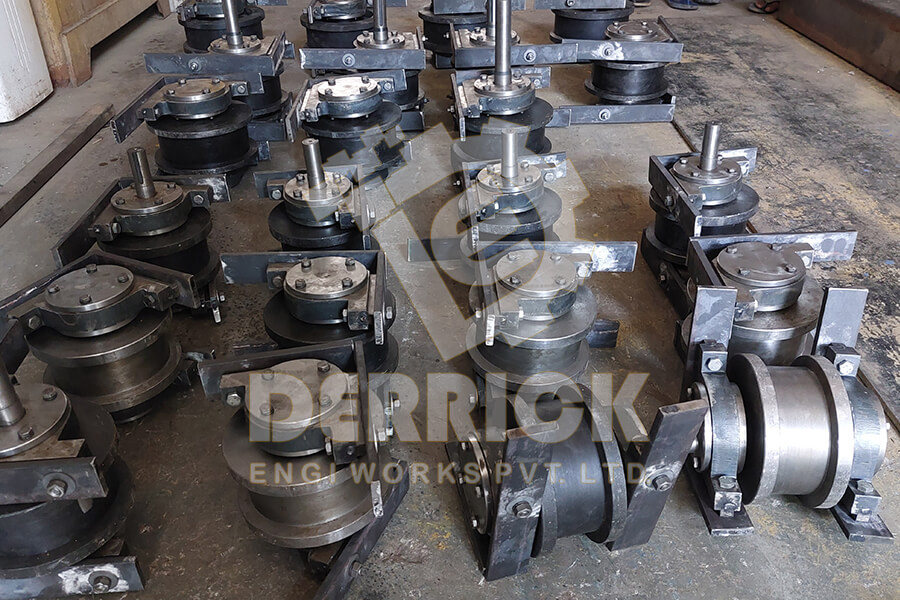

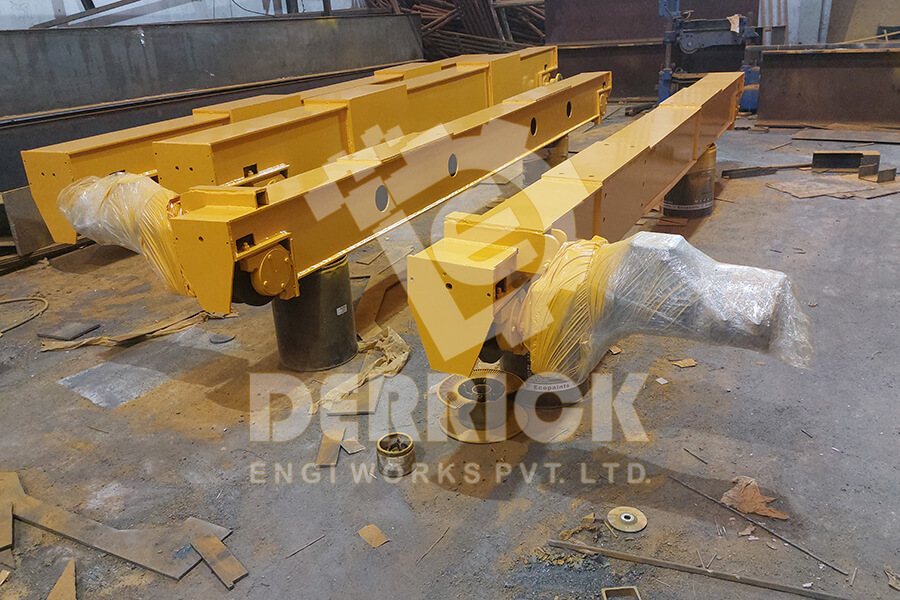

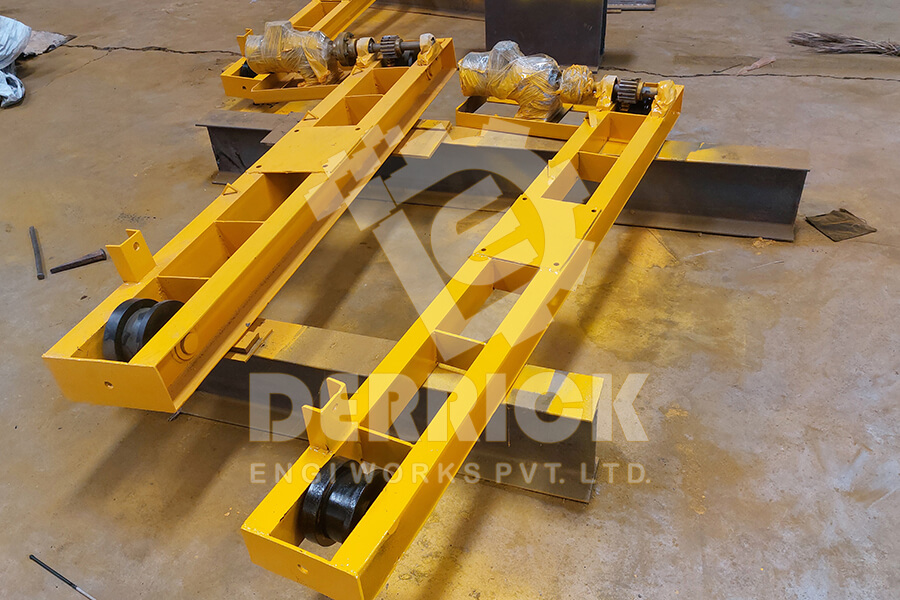

• L Block Type End Carriage
• C Channel Type END Carriage

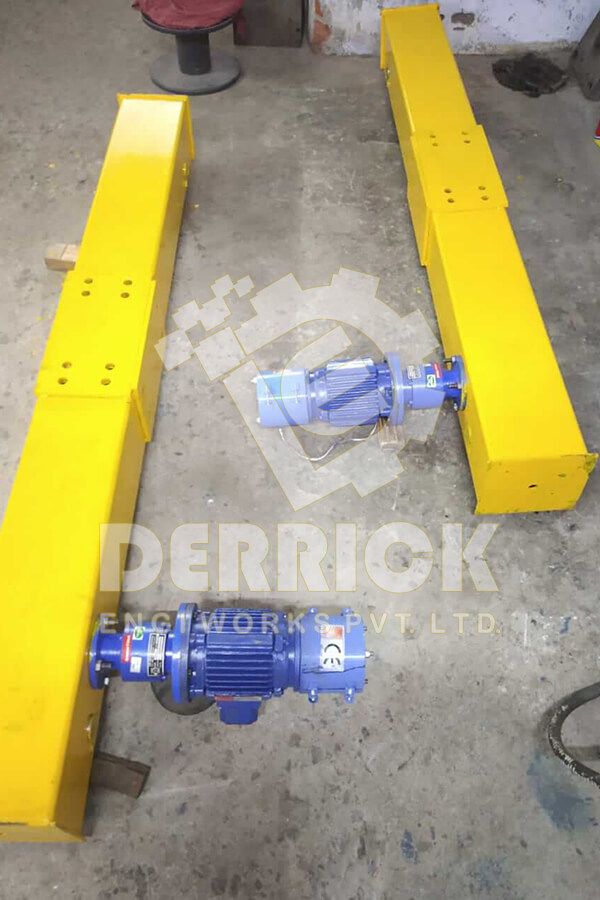

• BOX Type END Carriage
• Double Girder END Carriage

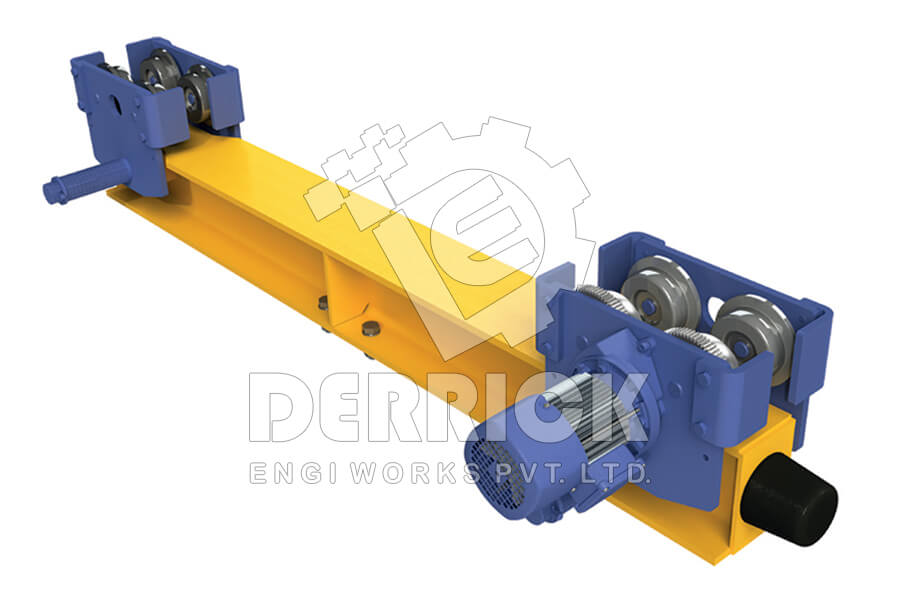

• Under Slung Type End Carriage
